Aluminum U Channel for Glass
Direct answer: An aluminum U channel for glass is an open, U-shaped extrusion used to receive, edge, support or protect a glass panel. NICE Aluminum’s current U-profile range uses 6063-T5 aluminum and supports customized anodizing, powder coating, wood-grain and electrophoretic finishes. The product family is used in glass framing, panel edging, furniture structures, partitions and decorative trim.
A U channel should be selected by its internal opening, leg height, wall structure and installation method. Two profiles that look similar in a catalog may behave differently when paired with a gasket, fastener or floor fixing. Buyers should therefore match the profile to the glass assembly and project detail rather than choosing by model image alone.
How to select the right specification
| Application | Channel function | Information to confirm |
|---|---|---|
| Glass edge trim | Protects and visually finishes the panel edge | Glass thickness, edge finish, visible side |
| Furniture frame | Creates a structural or decorative glass interface | Panel load, corner joint, fabrication |
| Partition | Supports or aligns a fixed glass panel | Mounting surface, fixing method, access |
| Handrail infill | Receives glass within a railing assembly | Project engineering and local requirements |
| Decorative panel | Provides a clean metal border or reveal | Color, texture and cut-length tolerance |
Select the internal opening first
The usable opening must account for the actual glass and any gasket or liner. Do not specify the channel solely as “for 8 mm glass” without confirming whether the glass is inserted directly, bonded or cushioned. The required retention method changes the fit.
Check leg height and edge coverage
A shallow channel functions mainly as trim, while a deeper channel provides more edge coverage. The correct depth depends on how much of the glass edge must be concealed and how the panel is installed. Indicate the visible reveal and insertion direction in the drawing.
Choose a finish for the real environment
NICE Aluminum lists anodizing, powder coating, wood grain and electrophoresis among its customizable finishes. For visible architectural or furniture surfaces, specify the finish, color reference and visible faces. Qualanod identifies coating thickness, appearance, sealing and light fastness as important anodizing quality criteria.
Differentiate each NS model with real data

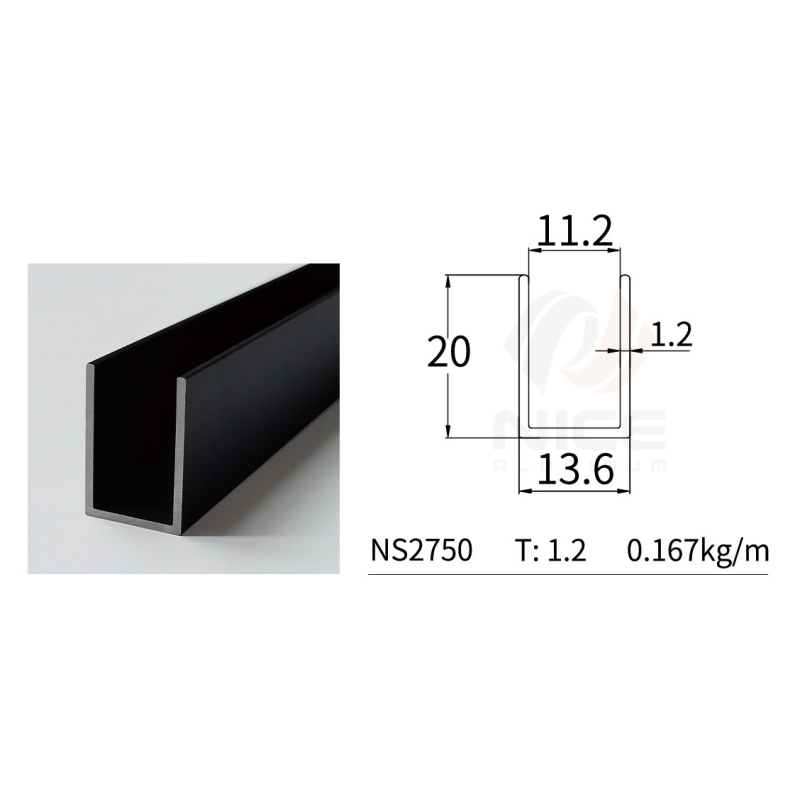

A model number makes a page identifiable, but it does not create useful product content by itself. Each NS-series page should publish its external dimensions, internal opening, wall thickness, recommended panel/gasket, weight per meter, visible surfaces and section drawing. Until those fields are available, the category page should remain the main ranking page.
Frequently asked questions
Is an aluminum U channel the same as an aluminum glass frame?
No. A U channel is an open section that usually receives or edges a panel. A complete glass frame uses multiple rails or a dedicated closed assembly around the panel.
What alloy is listed for NICE Aluminum U profiles?
The current U-profile product pages list 6063 aluminum in T5 temper.
Can I order a custom U-channel section?
Yes. NICE Aluminum offers OEM/ODM support for profile dimensions, surface finish and downstream fabrication subject to drawing review.
What is the listed MOQ for current NS U-profile pages?
Representative current NS U-profile pages list an MOQ of 300 kg. Confirm the MOQ for the selected model, finish and fabrication before ordering.
How should different U-channel models be compared?
Compare the section drawing, internal opening, leg height, wall thickness, weight, compatible glass/gasket and installation detail—not only the product image.
Related product resources
Technical references
The following external references explain extrusion design, aluminum alloys, surface finishing and quality-management principles. Product-specific requirements remain subject to the approved NICE Aluminum drawing and order specification.
Send your drawing for an engineering review
Include the application, section drawing or sample, critical dimensions, finish, finished length, quantity, machining and packing requirements. NICE Aluminum will review the profile and prepare the next-step quotation or sampling plan.
